1994 Defender 90 - Frame & Rust Repair

Defender 90 1994

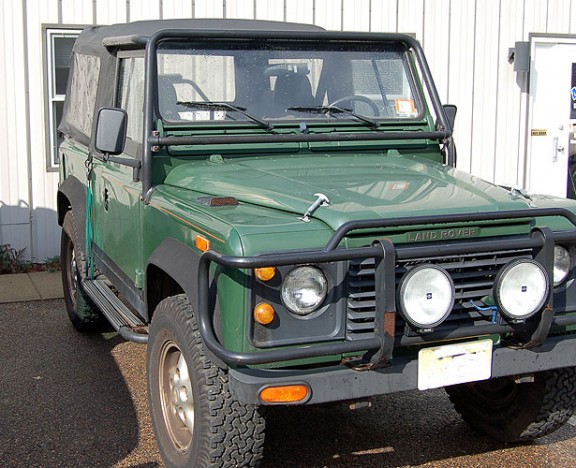

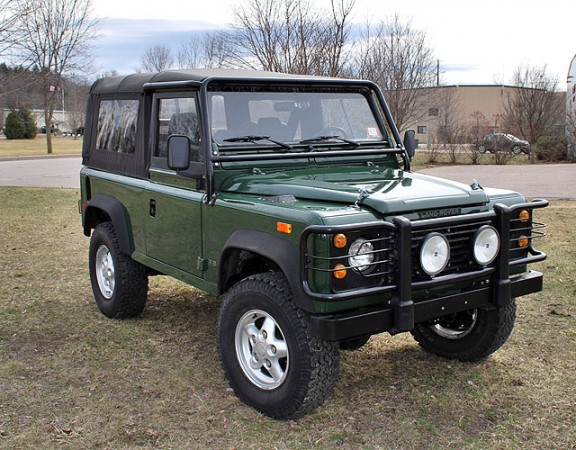

This green 94 Defender came to us for a general tidy up. The frame had a few holes & some rust but has some life left in it. The suspension & axles were very rusty. The top had shrunk badly & came nowhere near fitting.

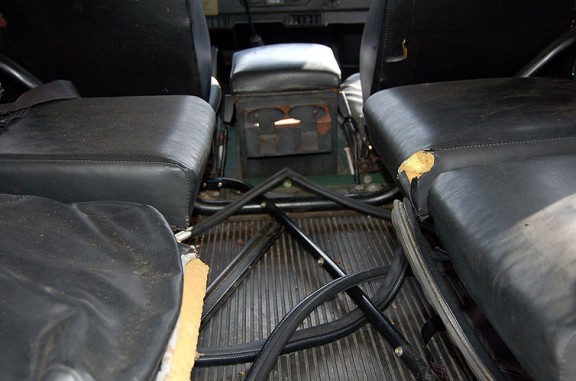

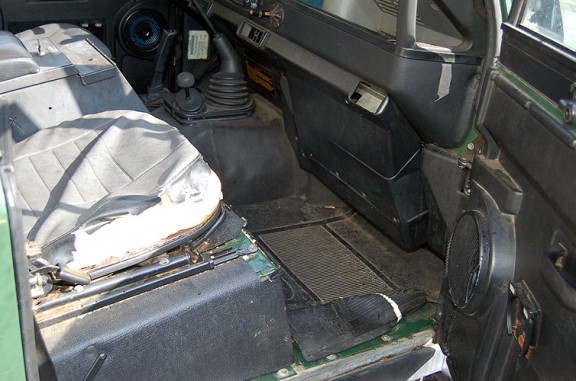

The interior was in poor shape.

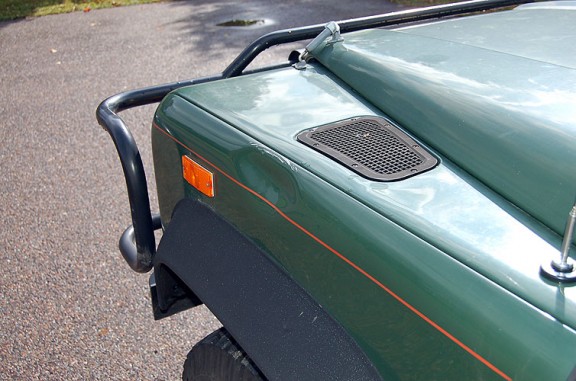

The left hand front wing was dented.

The customer had a specific budget in mind so we focused on the items that gave the biggest cosmetic & mechanical improvement for the money.

First off we started on the underbody improvements.

The fuel tank was removed & the rear x member & fuel tank supports were sand blasted.

Where necessary the fuel tank supports were repaired.

The x member itself was solid.

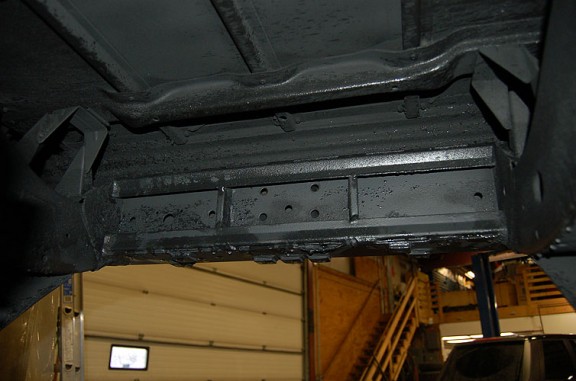

After blasting the rear x member was painted & undercoated.

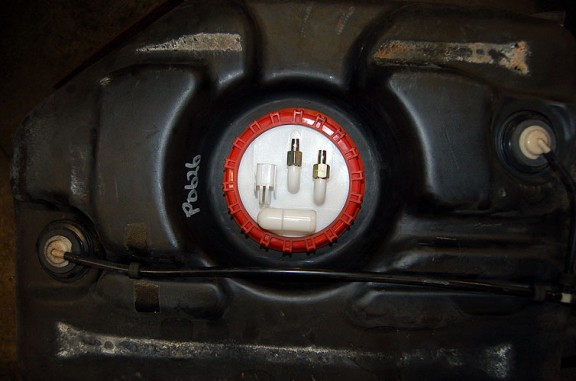

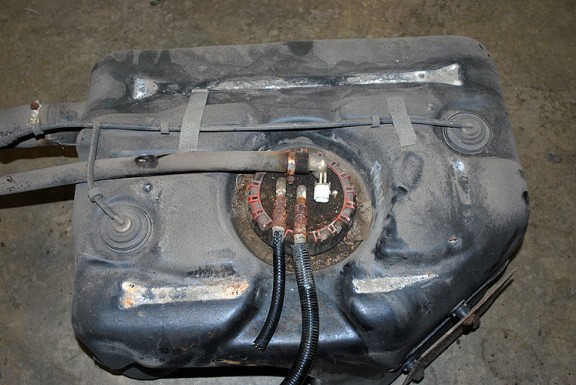

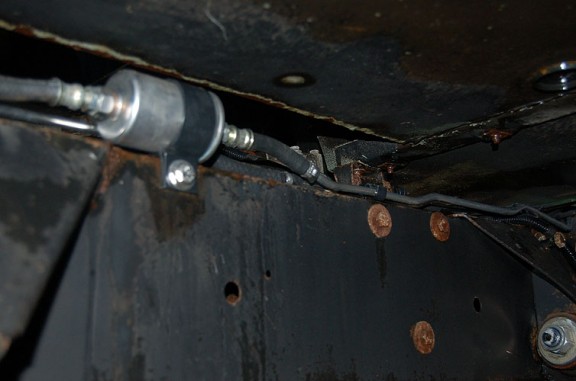

A common problem is the fuel pump lines rust very badly. While most of the pump is plastic the two short metal lines that are part of the pump rust & make the pump useless. We installed a new pump & put the tank back in place with a new galvanized skid plate.

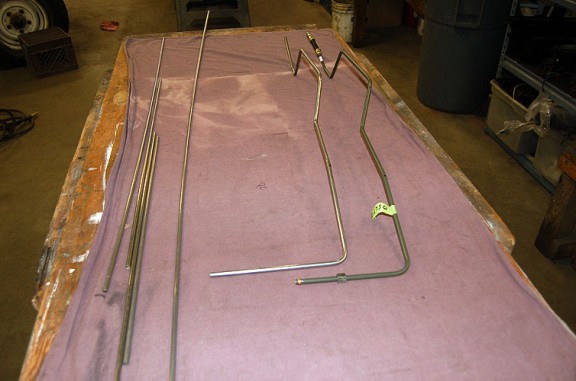

New stainless steel fuel lines were fabricated & installed.

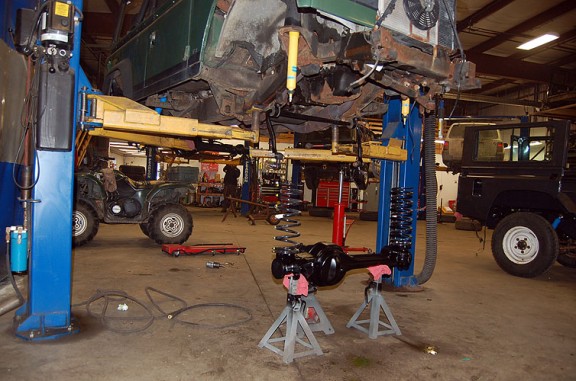

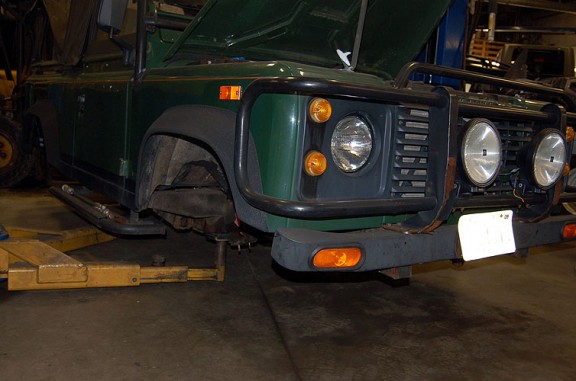

All the axles & suspension & fuel system were stripped out of the defender.

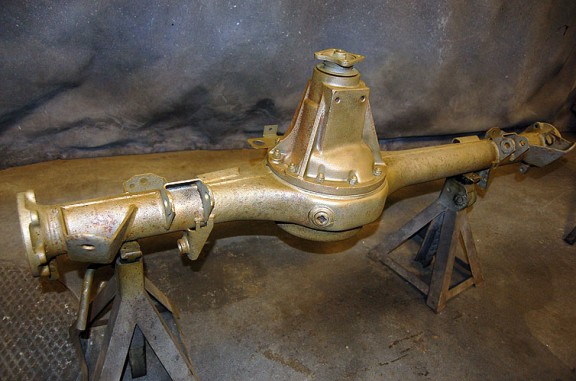

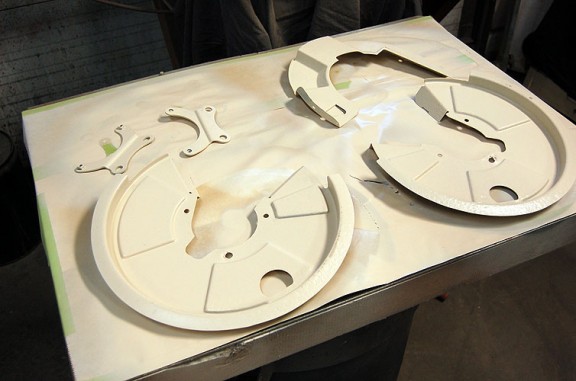

The axles & suspension were sand blasted & repainted with a paint far superior to the factory finish.

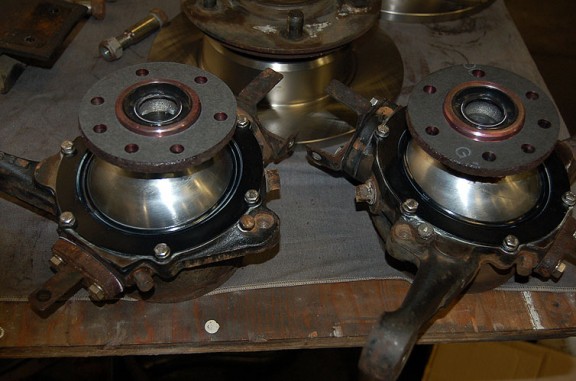

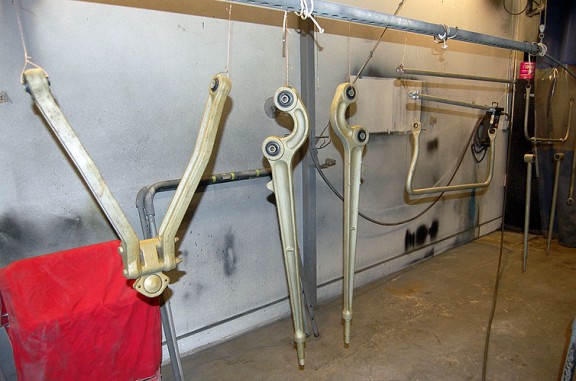

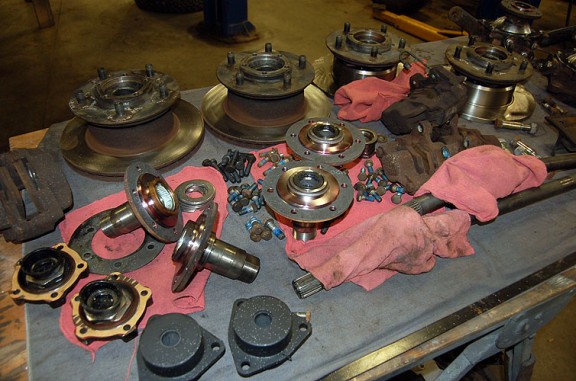

The axles were completely stripped & rebuilt. All the suspension arms were rebushed prior to installation & new HD spring & Bilstein shocks were used. Together with new steering tie rod ends & an alignment this makes the defender drive much more precisely.

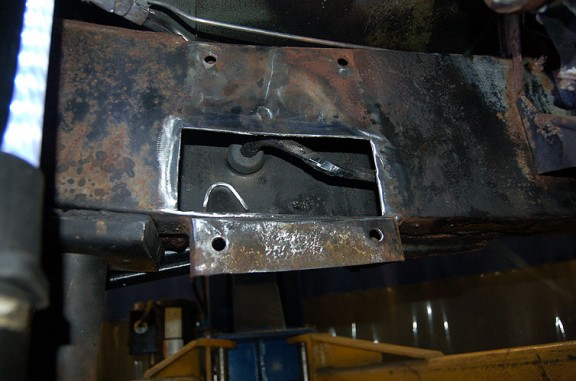

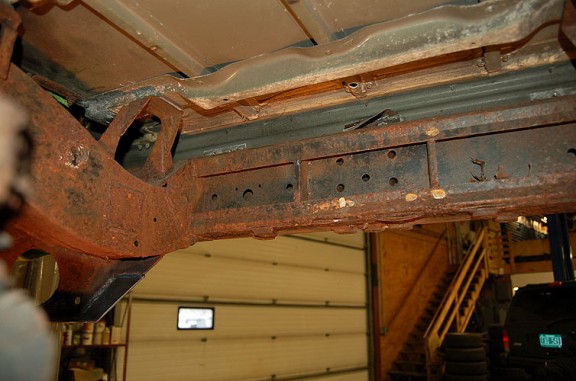

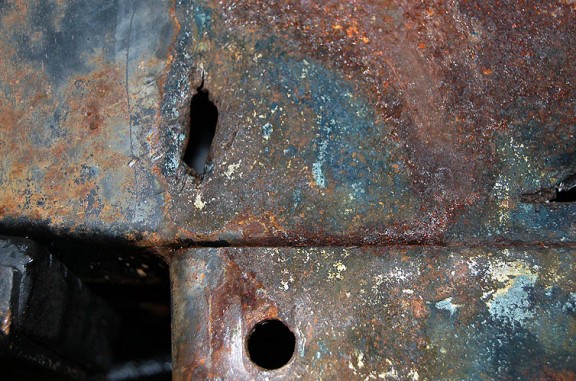

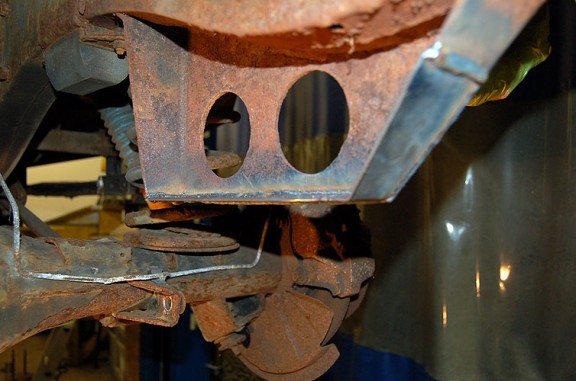

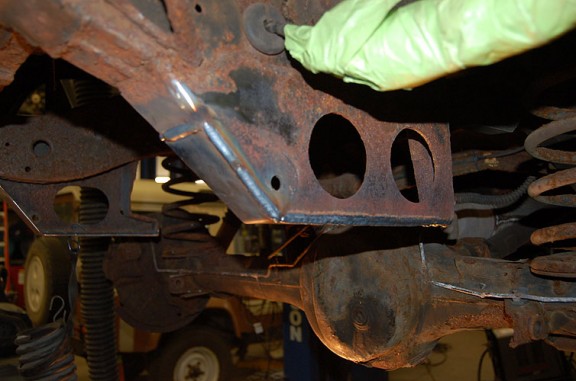

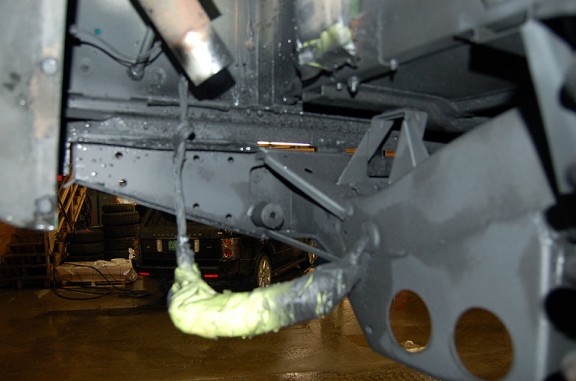

The frame was repaired in a couple of places. It is very common to see holes behind the gearbox x member as dirt is trapped between the two surfaces.

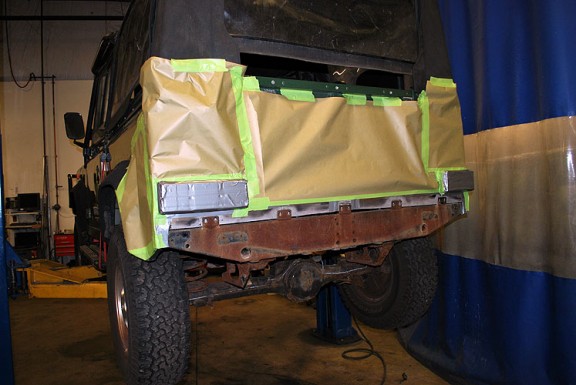

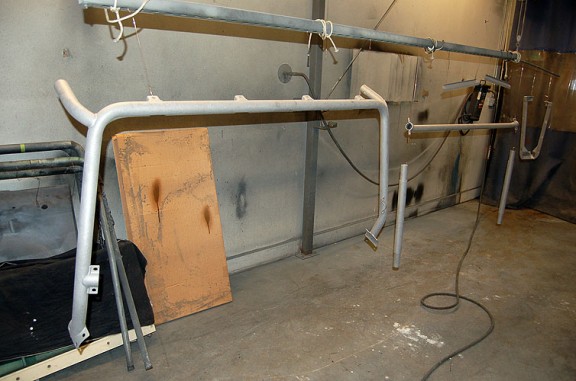

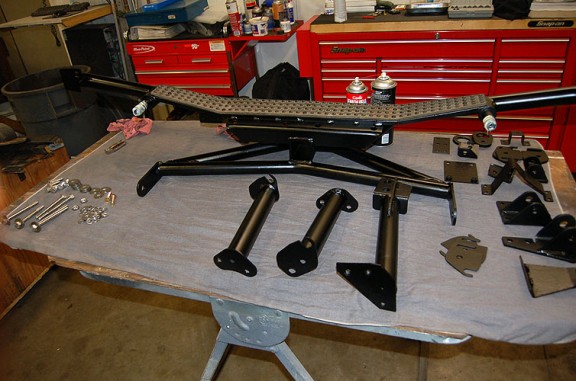

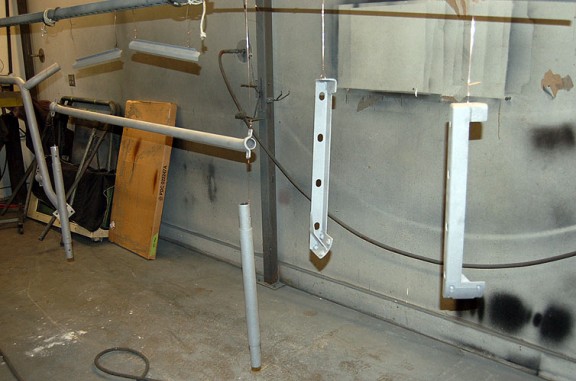

Another area of common rust on defenders is the roll cage supports, rear step & rear tire carrier. All of these were sand blasted & painted. Some of the roll cage supports needed repair. If just a mounting flange is rusty, we often repair the support, but if the tube has been compromised by rust we install a whole new support.

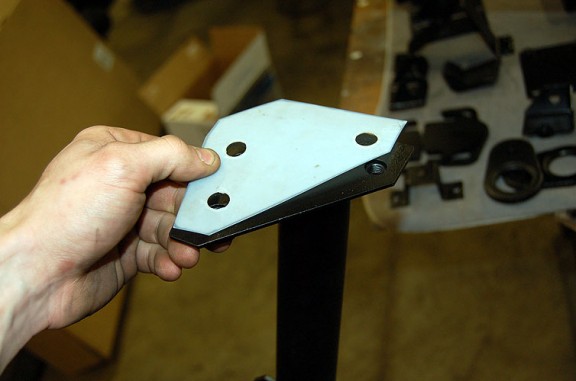

Plastic shims are cut & installed where steel meets aluminum, together with quality paint & undercoat this forms a barrier between the steel & aluminum & stops the dissimilar metal corrosion.

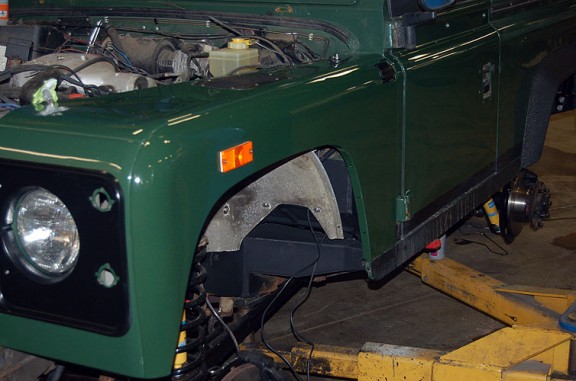

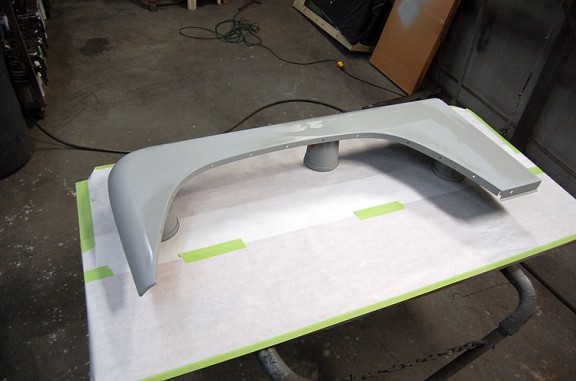

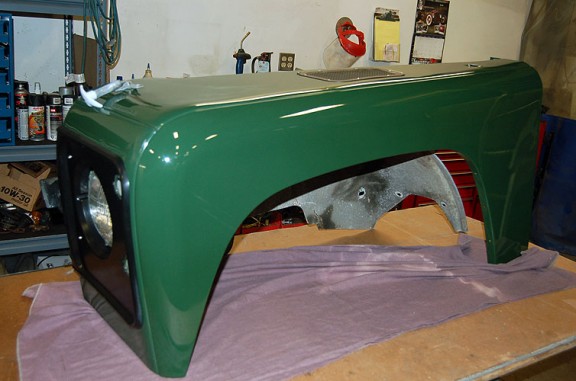

A new inner & outer fender was painted & installed. The rest of the body was carefully buffed to bring back the paint. We also buffed off the pin striping & repainted the sills where they had been painted black. This gave a much cleaner & more original look. While not a perfect match the defender looked very good for a reasonable cost.

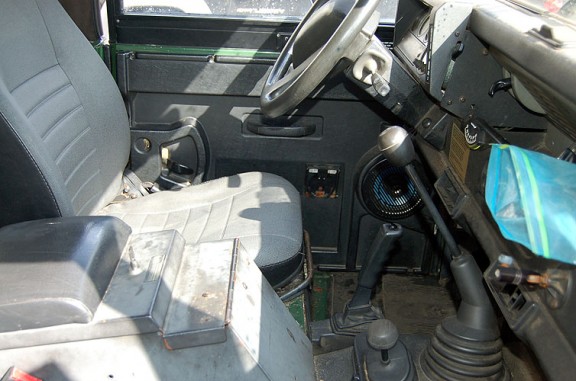

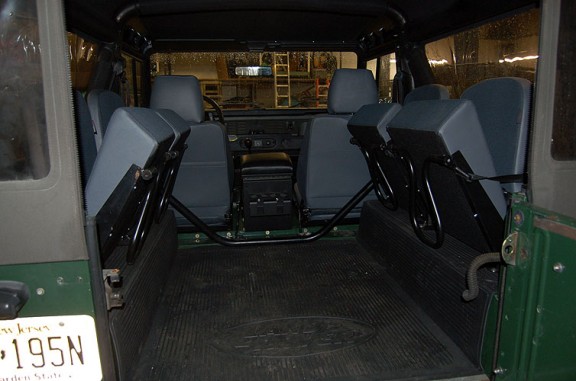

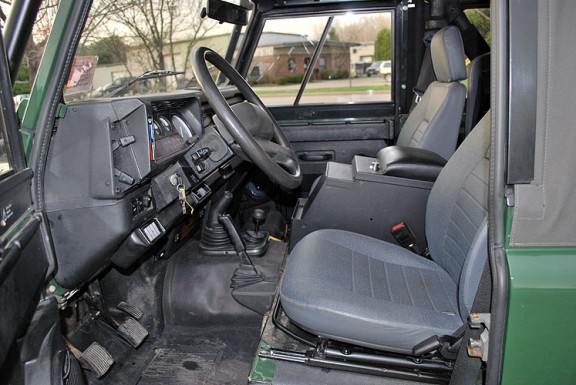

The interior got new seats front & rear. New mats were also installed along with a new center cubby box.

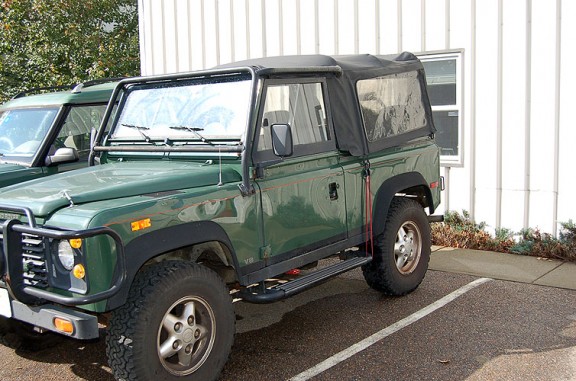

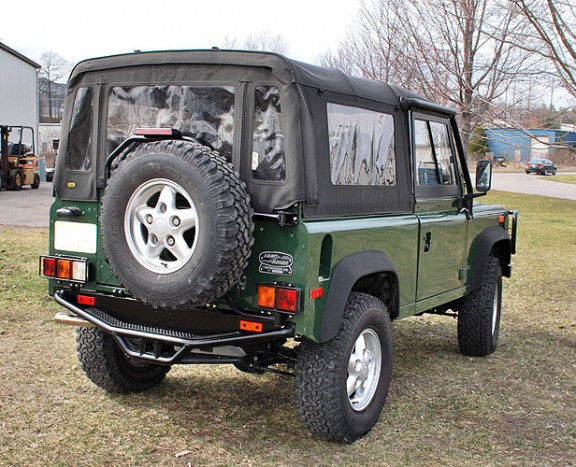

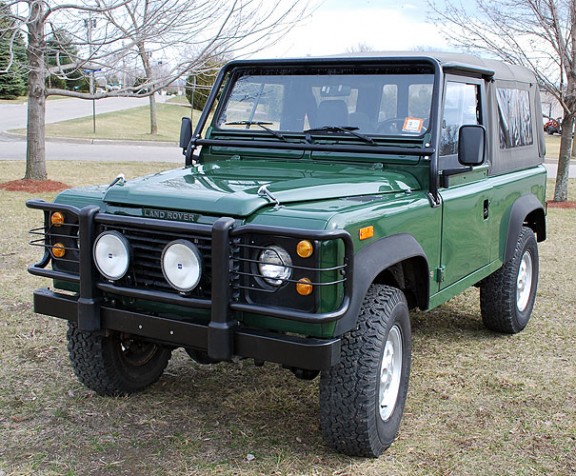

Even though this was not nearly a restoration, the tidy up gave this defender a whole new lease of life. The Badger soft top also helps keep out the elements to a greater degree than the factory tops ever did.
